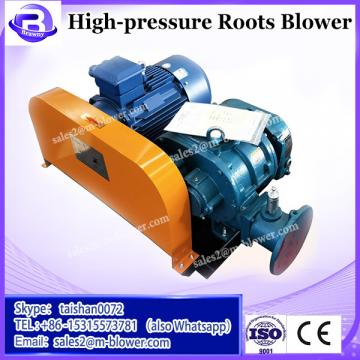

Roots Blower/High Pressure Blower/ Centrifugal Fan

Product Introduction

hot selling Roots Blower/High Pressure Blower/ Centrifugal Fan

Roots blower
Used in petrochemical industry, building materials, electric power, metallurgy, chemical fertilizer, mines, ports, textile, food, paper making, aquaculture and wastewater treatment, and the environmental protection industry, and other fields, mostly used to transport the air, and it can also be used to transport gas and hydrogen gas, acetylene, carbon dioxide, flammable, explosive and corrosive gas.
1. Flow: 0.5-300m3/min
2. Pressure: 14.7-78.4kpa

2)Intensive Roots Blower: MJ50, MJ65, MJ80, MJ100, MJ125, MJ150, MJ175, MJ200,
Capacity: 0.67m3/min-59.20m3/min
Pressure: 9.8kpa-73.5kpa
(3)High-Pressure Roots Blower: DSSR100,DSSR150,DSSR200, MFSR50H, MFSR65H, MFSR80H, MFSR100H, MFSR125H, MFSR150H, MFSR175H, MFSR200H, MFSR250H, and MFSR300H
Capacity: 1.21m3/min-134.1m3/min
Pressure: 29.4kpa-98.8kpa
(4)Roots Roots Blower/High Pressure Blower/ Centrifugal Fan Pump: MFSR50V, MFSR65V, MFSR80V, MFSR100V, MFSR125V, MFSR150V, MFSR175V, MFSR200V, MFSR250V, and MFSR300V.
Capacity: 0.86m3/min-136.3m3/min
Pressure: -1360mmAq--- -4488mmAq
OUR Roots blower key Features
3. Inlet/outlet diameter: 50-300mm

Main Parameter

Figure Photos

B/L of The History Trading

i, High-pressure Roots Blower Low noise
Roots Blower/High Pressure Blower/ Centrifugal Fan with adoption of helical tri-lobe roots rotors and the discharge port of special geometry, the airflow noise is much lower compared to typical straight-lobe roots blower. The noise level can be reduced by 8db in the band of low frequency; hence the noise in the surroundings of blower can be significantly improved.

JHJHBJH
ii, High adiabatic efficiency
High-pressure Roots Blower with design of helical tri-lobe roots rotors, Roots Blower/High Pressure Blower/ Centrifugal Fan the airflow pulsation is less and the air streamline would be more stable. Therefore the fluctuation in airflow is less and then the energy waste can be reduced. Additionally, the instantaneous backflow of discharge is lower by the design of special discharge port. Compared to straight-lobe roots blower, the adiabatic efficiency can be raised up to 20%.

HJJHBJH
iii, High-pressure Roots Blower Super Energy saving
Compared to the typicalRoots Blower/High Pressure Blower/ Centrifugal Fan under the same operation conditions of discharge pressure and airflow volume, the power consumption of helical tri-lobe roots blower will be lower by 20.
